10/100/1000mbps Fiber Media Converter

Name: 101001000mbps Fiber Media Converter
Brand: JUNPU
Price: 1 USD

Brand Name : JUNPU

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 PCS

Payment Terms : T/T, L/C, Western Union

Delivery Time : 7-15 DAYS

Contact Now

10/100/1000mbps Gigabit Fiber Media Converter

Feature

1. Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply

Technical Information:
1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%
3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure
6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K

Detailed Images

Wholesale 10/100/1000mbps Fiber Media Converter from china suppliers

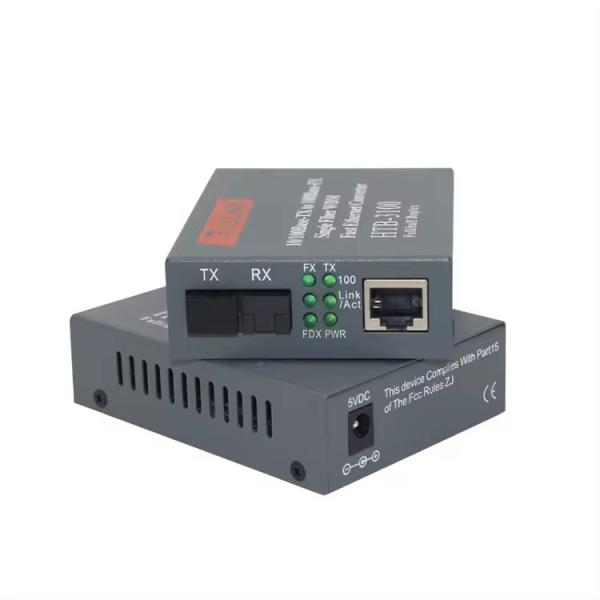

10/100/1000mbps Fiber Media Converter Images
